Name: MS STORMWATER OUTFALLS ALL

Display Field: FNUM

Type: Feature Layer

Geometry Type: esriGeometryPoint

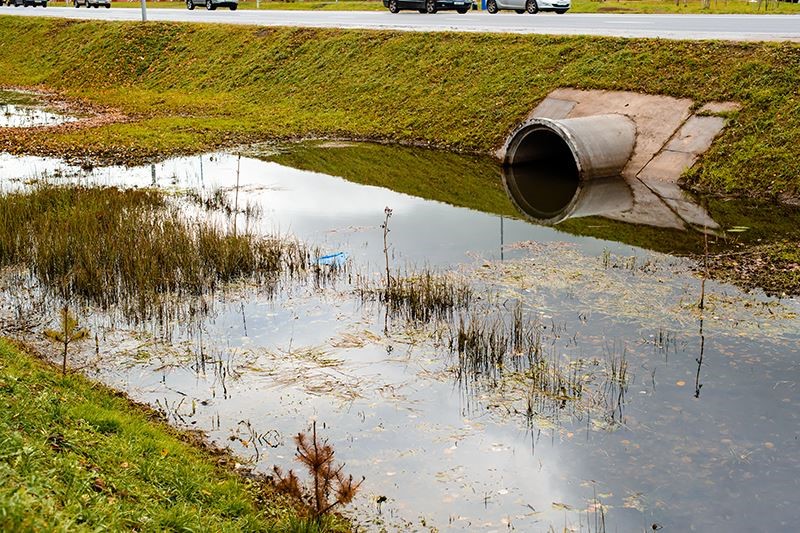

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This feature class represents stormwater outfalls inventory in Boca Raton. Outfalls are distinguished by Major Outfalls, Non Major City Outfalls, Non MS4, and other ownerships. Dataset was developed by MS4 consultant. Data will be modified and updated by the Stormwater Operations team and inspections and maintenance logs will be completed in the following related tables:</SPAN></P><P><SPAN>MS4_NPDES_MAJOR_OUTFALL_INSPECTION</SPAN></P><P><SPAN>MS4_NPDES_MAINTENANCE_LOGS_OUTFALLS</SPAN></P><P><SPAN>“Major municipal separate storm sewer outfall” or “major outfall” means a municipal separate storm sewer outfall that discharges from a single pipe with an inside diameter of 36 inches or more or its equivalent (discharge from a single conveyance other than circular pipe which is associated with a drainage area of more than 50 acres); or for municipal separate storm sewers that receive stormwater from lands zoned for industrial activity (based on comprehensive zoning plans or the equivalent), an outfall that discharges from a single pipe with an inside diameter of 12 inches or more or from its equivalent (discharge from other than a circular pipe associated with a drainage area of 2 acres or more). [62-624.200(5), F.A.C.]</SPAN></P><P><SPAN>&gt;= 36 inches</SPAN></P><P><SPAN>OR</SPAN></P><P><SPAN>associated with 50-acre or greater drainage area</SPAN></P><P><SPAN>OR</SPAN></P><P><SPAN>From lands zoned industrial,</SPAN></P><P><SPAN>&gt;= 12 inches</SPAN></P><P><SPAN>OR</SPAN></P><P><SPAN>associated with 2-acre or greater drainage area</SPAN></P></DIV></DIV></DIV>

Copyright Text: Anne Capelli - Mock Roos anne.capelli@mockroos.com City of Boca Raton Municipal Services Engineering Cassandra Neira GIS Analyst

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 929899.9020134956
YMin: 723443.7477073222
XMax: 967009.0266139954
YMax: 761151.9439443201
Spatial Reference: 102658  (2236)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [132, 0, 168, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPointLabelPlacementAboveRight
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: Tahoma
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 5000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FNUM ( type: esriFieldTypeString, alias: Outfall ID, length: 20 )
• RBODY ( type: esriFieldTypeString, alias: Receiving Waterbody, length: 31 , Coded Values: [ICWW: ICWW] , [L-40: LWDD L-40 Canal] , [C-15: C-15 Canal] , ...6 more... )
• POINT_X ( type: esriFieldTypeDouble, alias: POINT_X )
• POINT_Y ( type: esriFieldTypeDouble, alias: POINT_Y )
• OWNER ( type: esriFieldTypeString, alias: Owner, length: 50 , Coded Values: [Boca Beach & Park District: Boca Beach & Park District] , [Boca Raton MS4: Boca Raton MS4] , [FDOT Dist IV: FDOT Dist IV] , ...2 more... )
• DESCRIP ( type: esriFieldTypeString, alias: Description, length: 50 )
• Source ( type: esriFieldTypeString, alias: Source, length: 50 )
• ContriArea ( type: esriFieldTypeString, alias: Contributing Area, length: 50 )
• SIZE ( type: esriFieldTypeSmallInteger, alias: Size )
• MATERIAL ( type: esriFieldTypeString, alias: Material, length: 15 )
• NPDES_MJR ( type: esriFieldTypeString, alias: NPDES Major Outfall?, length: 10 , Coded Values: [Major: Major Outfall] , [No: Non Major City Outfall] , [FDOT: FDOT NPDES Outfall] , ...3 more... )
• NOTES_ ( type: esriFieldTypeString, alias: NOTES_, length: 70 )
• INSP_C4Y2 ( type: esriFieldTypeString, alias: NPDES Major Outfall?, length: 10 , Coded Values: [Major: Major Outfall] , [No: Non Major City Outfall] , [FDOT: FDOT NPDES Outfall] , ...3 more... )
• Latitude ( type: esriFieldTypeInteger, alias: Latitude )
• Longitude ( type: esriFieldTypeInteger, alias: Longitude )
• Lat ( type: esriFieldTypeDouble, alias: Lat )
• Long ( type: esriFieldTypeDouble, alias: Long )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Status ( type: esriFieldTypeString, alias: Status, length: 50 , Coded Values: [Inspected: Inspected] , [Need to Verify: Need to Verify] , [Verified: Verified] , ...2 more... )
• MANAGED_BY ( type: esriFieldTypeString, alias: Managed By, length: 255 , Coded Values: [City: City] , [County: County] , [FDOT: FDOT] , ...2 more... )
• Year_Last_Inspected ( type: esriFieldTypeInteger, alias: Year Last Inspected )
• PROJECT_NO ( type: esriFieldTypeString, alias: Project Number, length: 255 )
• CUES_LINK ( type: esriFieldTypeString, alias: Cues Link, length: 255 )
• ASBUILT_LINK ( type: esriFieldTypeString, alias: Asbuilt Hyperlink, length: 255 )
• MORE_DOCUMENTS ( type: esriFieldTypeString, alias: Link to More Documents, length: 255 )
• FY_LAST_INSPECTED ( type: esriFieldTypeString, alias: Fiscal Year Last Inspected, length: 255 , Coded Values: [2021-2022: 2021-2022] , [2022-2023: 2022-2023] , [2023-2024: 2023-2024] , ...2 more... )
• RIM_ELEVATION ( type: esriFieldTypeDouble, alias: Rim Elevation (ft) )
• BOTTOM_ELEVATION ( type: esriFieldTypeDouble, alias: Bottom Elevation (ft) )
• INVERT_N ( type: esriFieldTypeDouble, alias: Invert North (ft) )
• INVERT_S ( type: esriFieldTypeDouble, alias: Invert South (ft) )
• INVERT_W ( type: esriFieldTypeDouble, alias: Invert West (ft) )
• INVERT_E ( type: esriFieldTypeDouble, alias: Invert East (ft) )
• INVERT_NE ( type: esriFieldTypeDouble, alias: Invert NE (ft) )
• INVERT_NW ( type: esriFieldTypeDouble, alias: Invert NW (ft) )
• INVERT_SE ( type: esriFieldTypeDouble, alias: Invert SE (ft) )
• INVERT_SW ( type: esriFieldTypeDouble, alias: Invert SW (ft) )
• DATUM ( type: esriFieldTypeString, alias: Datum, length: 255 )
• ESRIGNSS_POSITIONSOURCETYPE ( type: esriFieldTypeSmallInteger, alias: Position source type , Coded Values: [0: Unknown] , [1: User defined] , [2: Integrated (System) Location Provider] , ...2 more... )
• ESRIGNSS_RECEIVER ( type: esriFieldTypeString, alias: Receiver Name, length: 50 )
• ESRIGNSS_LATITUDE ( type: esriFieldTypeDouble, alias: Latitude )
• ESRIGNSS_LONGITUDE ( type: esriFieldTypeDouble, alias: Longitude )
• ESRIGNSS_ALTITUDE ( type: esriFieldTypeDouble, alias: Altitude )
• ESRIGNSS_H_RMS ( type: esriFieldTypeDouble, alias: Horizontal Accuracy (m) )
• ESRIGNSS_V_RMS ( type: esriFieldTypeDouble, alias: Vertical Accuracy (m) )
• ESRIGNSS_FIXDATETIME ( type: esriFieldTypeDate, alias: Fix Time, length: 8 )
• ESRIGNSS_FIXTYPE ( type: esriFieldTypeSmallInteger, alias: Fix Type , Coded Values: [0: Fix not valid] , [1: GPS] , [2: Differential GPS] , ...2 more... )
• ESRIGNSS_CORRECTIONAGE ( type: esriFieldTypeDouble, alias: Correction Age )
• ESRIGNSS_STATIONID ( type: esriFieldTypeSmallInteger, alias: Station ID , Range: [0, 1023] )
• ESRIGNSS_NUMSATS ( type: esriFieldTypeSmallInteger, alias: Number of Satellites , Range: [0, 99] )
• ESRIGNSS_PDOP ( type: esriFieldTypeDouble, alias: PDOP )
• ESRIGNSS_HDOP ( type: esriFieldTypeDouble, alias: HDOP )
• ESRIGNSS_VDOP ( type: esriFieldTypeDouble, alias: VDOP )
• ESRIGNSS_DIRECTION ( type: esriFieldTypeDouble, alias: Direction of travel (°) )
• ESRIGNSS_SPEED ( type: esriFieldTypeDouble, alias: Speed (km/h) )
• ESRISNSR_AZIMUTH ( type: esriFieldTypeDouble, alias: Compass reading (°) )
• ESRIGNSS_AVG_H_RMS ( type: esriFieldTypeDouble, alias: Average Horizontal Accuracy (m) )
• ESRIGNSS_AVG_V_RMS ( type: esriFieldTypeDouble, alias: Average Vertical Accuracy (m) )
• ESRIGNSS_AVG_POSITIONS ( type: esriFieldTypeSmallInteger, alias: Averaged Positions )
• ESRIGNSS_H_STDDEV ( type: esriFieldTypeDouble, alias: Standard Deviation (m) )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )

Relationships:

• MS4_NPDES_MAJOR_OUTFALL_INSPECTION (4) -- Related To: Major Outfall Inspection Form (19)
• MS4_NPDES_MAINTENANCE_LOGS_OUTFALLS (5) -- Related To: MS4 NPDES Outfalls Maintenance Logs (31)

Supported Operations:   Query   Query Attachments   Query Analytic   Query Related Records   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
